Yamaha Kodiak 700 Kibblewhite Cylinder Head Studs KPMI 80-82450 Head Bolts Stud

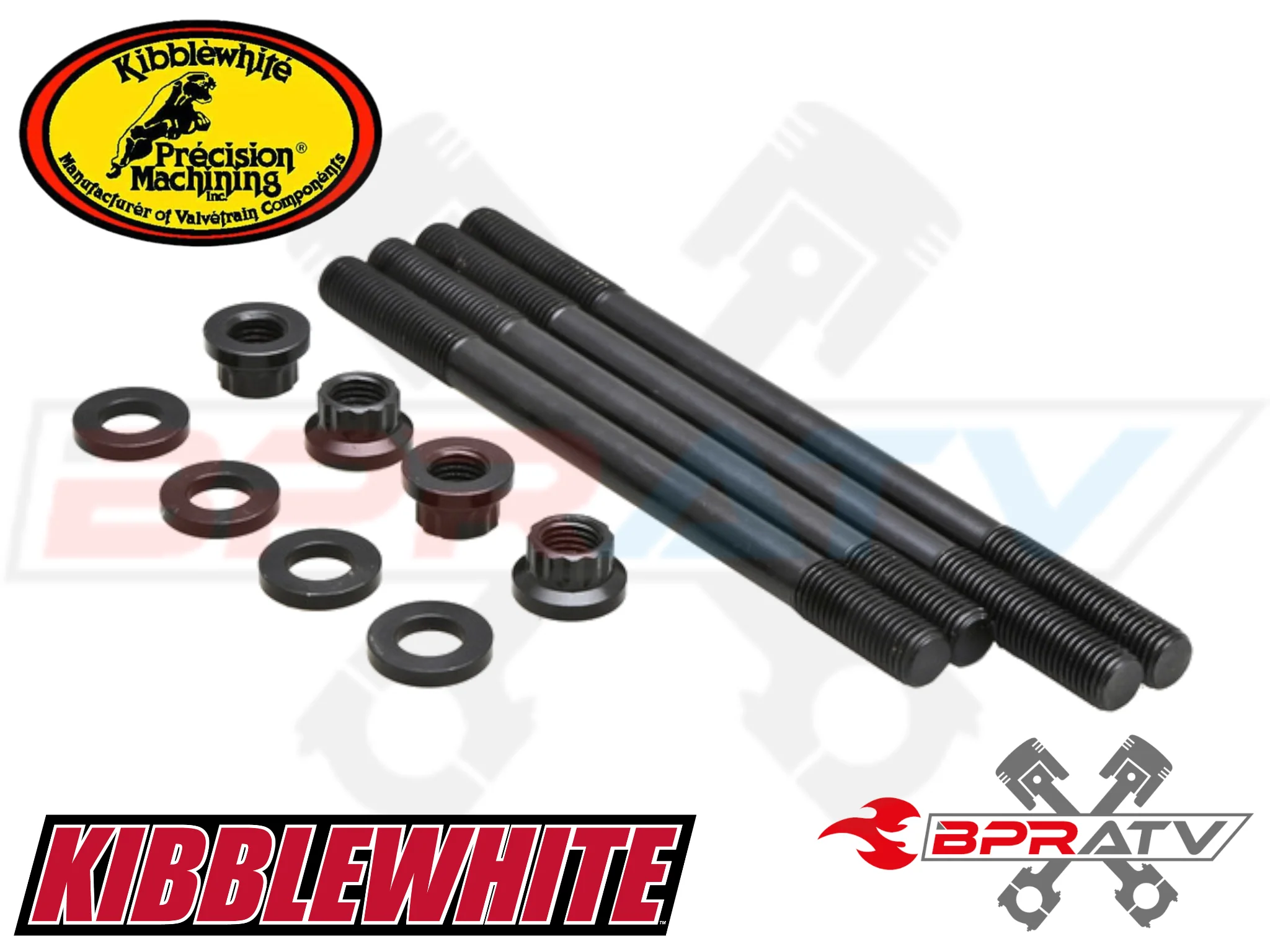

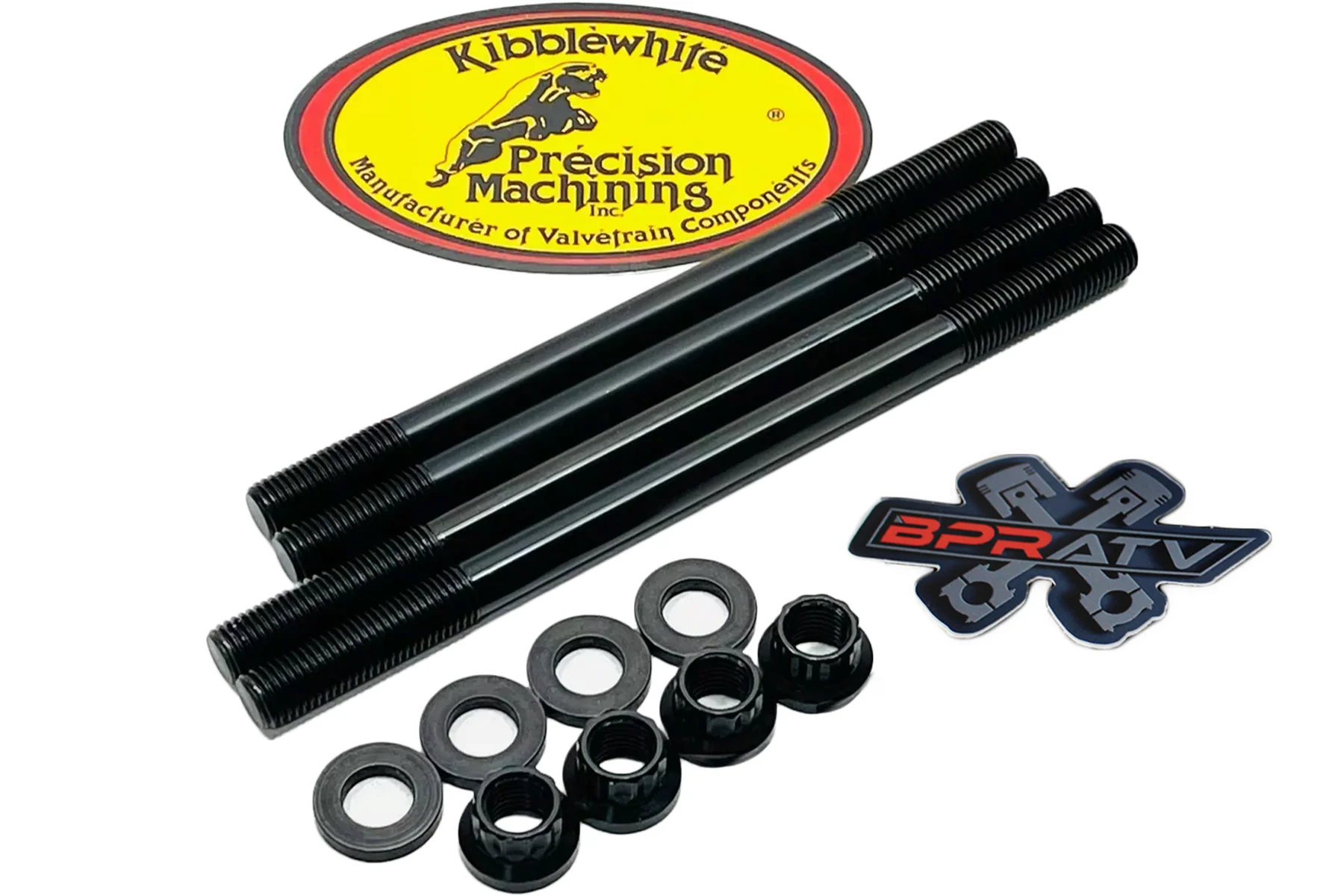

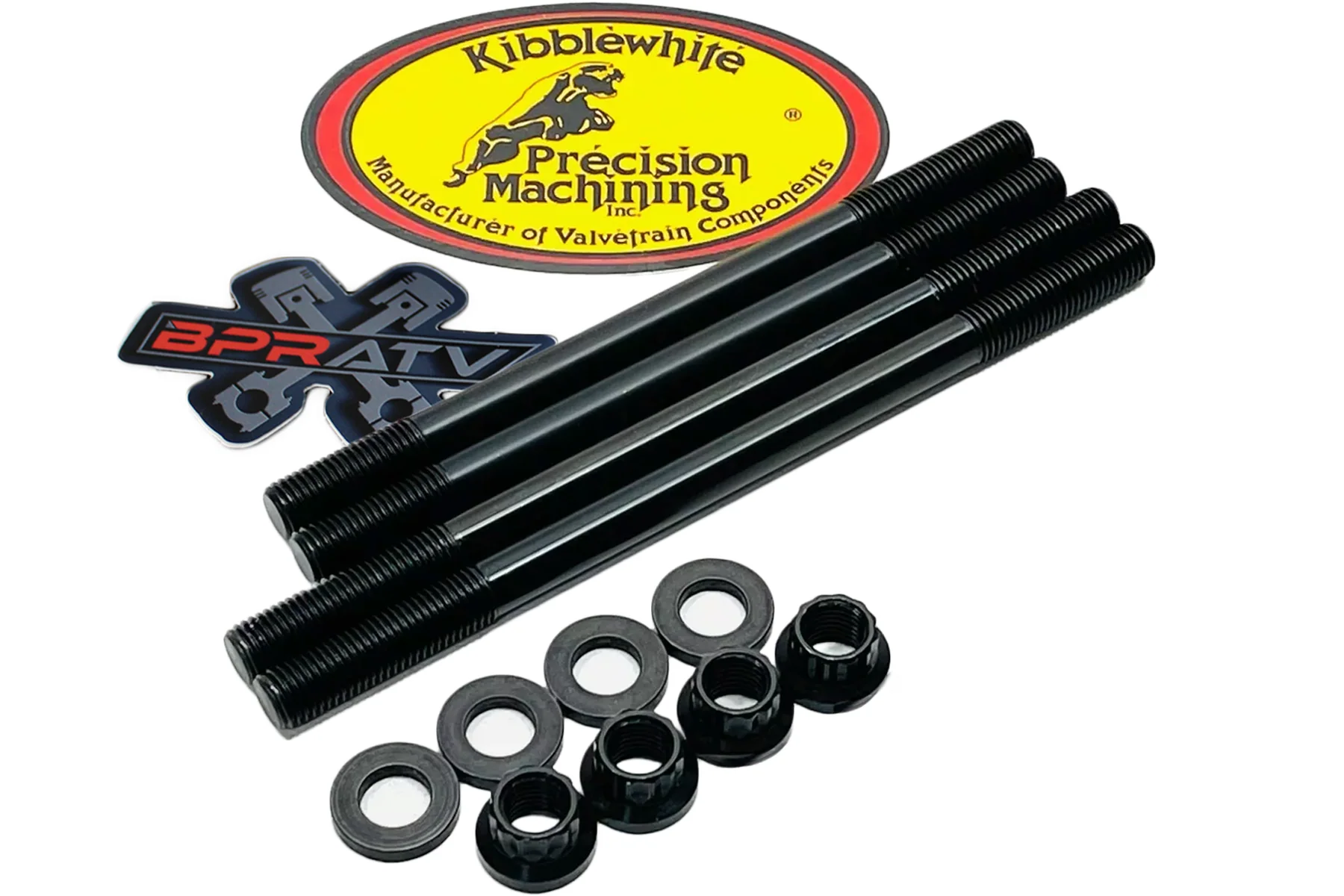

Brand New Kibblewhite Extreme Heavy Duty Head Stud Kit

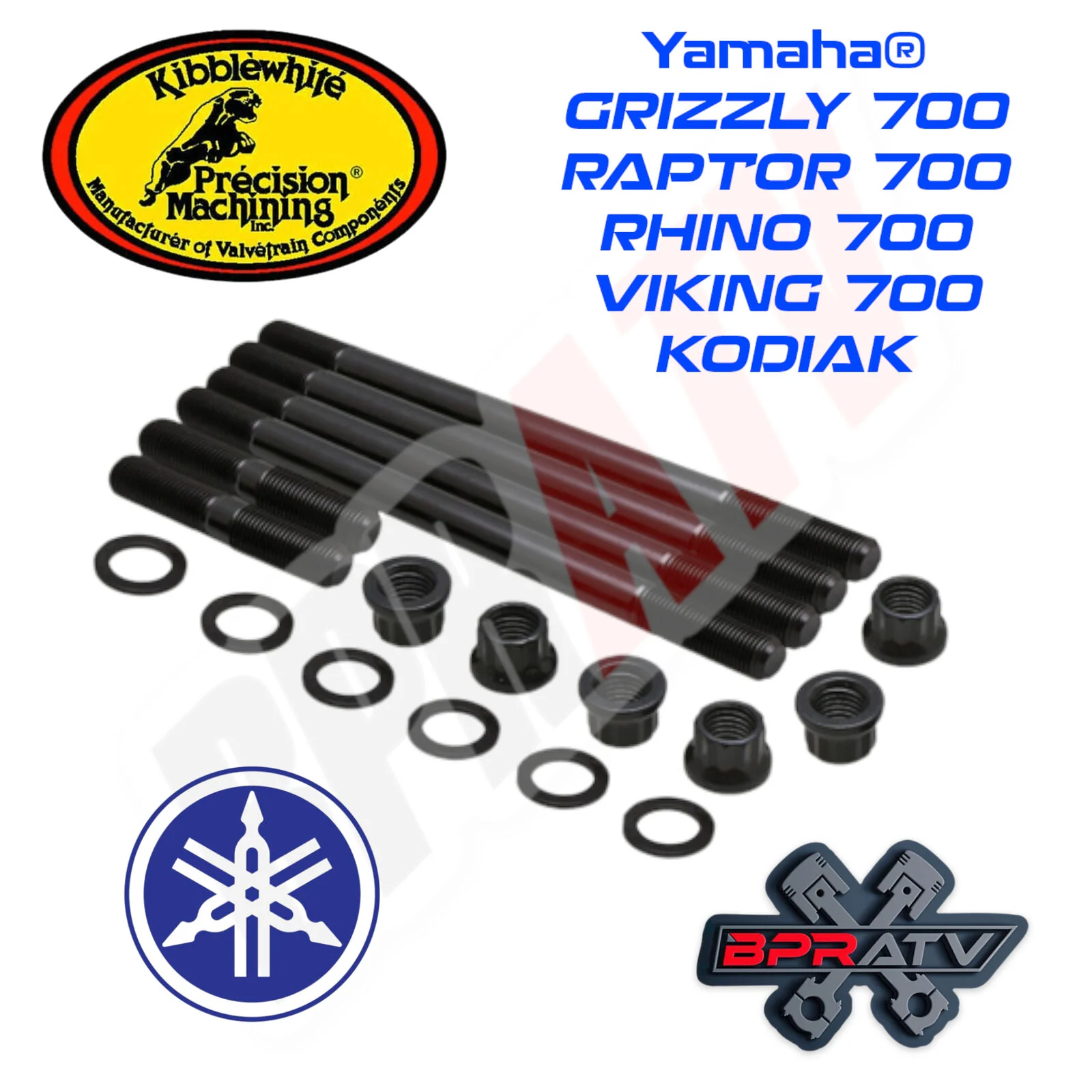

Fits The Following Yamaha Models & Years:

Yamaha® Grizzly™ 700 2007-2015

Yamaha® Grizzly™ 700 2019-2025

Yamaha® Raptor™ 700 2006-2025

Yamaha® Rhino™ 700 2008-2013

Yamaha® Viking™ 700 2014-2025

Yamaha® Kodiak™ 2019-2025

- Nuts are machined from billet high tensile steel and heat treated

- Studs are heat treated 180,000 PSI aircraft alloy steel

- Both nut and stud have rolled threads for the strongest possible threads

- Both nut and stud are black oxide treated for enhanced corrosion resistance

- Standard style studs match the OEM diameters, and have a 12mm thread for the case end, which then reduces to a 10mm diameter for the nut. No modification reqd.

KPMI® Cylinder Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide. Congratulations on your choice to purchase a stud that meets and exceeds your stock-replacement of high-performance needs!

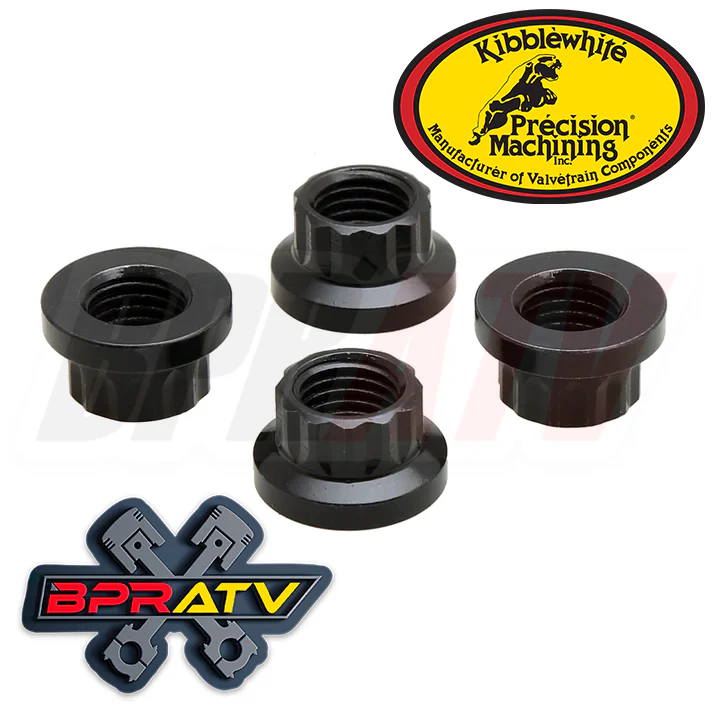

KPMI® nuts are single point machined from high tensile strength Aircraft Alloy Steel. During the machining process close tolerances and smooth surface finishes are maintained. Two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment provides excellent corrosion resistance and appearance.

MADE IN USA
